Linerset CCK

Technical data

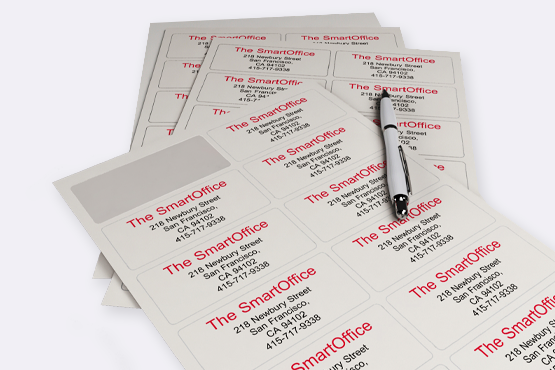

One-side clay-coated release paper for siliconization. Good dimensional stability and lay-flatness. Low grammages generally used for labelling and high grammages for graphic films applications.

Interested in this product? Can't find the product you need? Contact us

Linerset CCK - List of Certificates

PEFC Chain of Custody (multisite)

FSC Chain of Custody (multisite)

ISO 14001 Environment

EMAS Motril mill

ISO 50001 Energy Efficiency

ISO 9001 Quality

ISO 45001 Health and Safety - Lecta

Paper Profile Linerset CCK

Interested in this product? Can't find the product you need? Contact us

Technical specifications Linerset CCK

Property	Test Method	Unit	Value	Tolerance
Substance	ISO 536 / TAPPI T410	g/m²	55	±4%
Thickness	ISO 534 / TAPPI T411	µm	55	±4%
Parker roughness	ISO 8791-4 / TAPPI T555	µm	2.2	≤2.5
Tensile strength MD	ISO 1924-2 / TAPPI T 494	kN/m	4	-0.7
Tensile strength CD	ISO 1924-2 / TAPPI T 494	kN/m	2.0	-0.3
Cobb-Unger	SCAN-P 37:77	g/m²	0.4	≤0.8

Property	Test Method	Unit	Value	Tolerance
Substance	ISO 536 / TAPPI T410	g/m²	61	±4%
Thickness	ISO 534 / TAPPI T411	µm	61	±4%
Parker roughness	ISO 8791-4 / TAPPI T555	µm	2.2	≤2.5
Tensile strength MD	ISO 1924-2 / TAPPI T 494	kN/m	4.1	-0.7
Tensile strength CD	ISO 1924-2 / TAPPI T 494	kN/m	2.1	-0.3
Cobb-Unger	SCAN-P 37:77	g/m²	0.4	≤0.8

Property	Test Method	Unit	Value	Tolerance
Substance	ISO 536 / TAPPI T410	g/m²	74	±4%
Thickness	ISO 534 / TAPPI T411	µm	74	±4%
Parker roughness	ISO 8791-4 / TAPPI T555	µm	2.2	≤2.5
Tensile strength MD	ISO 1924-2 / TAPPI T 494	kN/m	4.4	-0.7
Tensile strength CD	ISO 1924-2 / TAPPI T 494	kN/m	2.5	-0.3
Cobb-Unger	SCAN-P 37:77	g/m²	0.4	≤0.8

Property	Test Method	Unit	Value	Tolerance
Substance	ISO 536 / TAPPI T410	g/m²	80	±4%
Thickness	ISO 534 / TAPPI T411	µm	80	±4%
Parker roughness	ISO 8791-4 / TAPPI T555	µm	2.2	≤2.5
Tensile strength MD	ISO 1924-2 / TAPPI T 494	kN/m	4.6	-0.7
Tensile strength CD	ISO 1924-2 / TAPPI T 494	kN/m	2.6	-0.3
Cobb-Unger	SCAN-P 37:77	g/m²	0.4	≤0.8

Property	Test Method	Unit	Value	Tolerance
Substance	ISO 536 / TAPPI T410	g/m²	86	±4%
Thickness	ISO 534 / TAPPI T411	µm	86	±4%
Parker roughness	ISO 8791-4 / TAPPI T555	µm	2.2	≤2.5
Tensile strength MD	ISO 1924-2 / TAPPI T 494	kN/m	4.9	-0.7
Tensile strength CD	ISO 1924-2 / TAPPI T 494	kN/m	2.6	-0.3
Cobb-Unger	SCAN-P 37:77	g/m²	0.4	≤0.8

Property	Test Method	Unit	Value	Tolerance
Substance	ISO 536 / TAPPI T410	g/m²	100	±4%
Thickness	ISO 534 / TAPPI T411	µm	101	±4%
Parker roughness	ISO 8791-4 / TAPPI T555	µm	2.2	≤2.5
Tensile strength MD	ISO 1924-2 / TAPPI T 494	kN/m	5.3	-0.7
Tensile strength CD	ISO 1924-2 / TAPPI T 494	kN/m	2.7	-0.3
Cobb-Unger	SCAN-P 37:77	g/m²	0.4	≤0.8

Property	Test Method	Unit	Value	Tolerance
Substance	ISO 536 / TAPPI T410	g/m²	120	±4%
Thickness	ISO 534 / TAPPI T411	µm	118	±4%
Parker roughness	ISO 8791-4 / TAPPI T555	µm	2	≤2.5
Tensile strength MD	ISO 1924-2 / TAPPI T 494	kN/m	6.5	-0.7
Tensile strength CD	ISO 1924-2 / TAPPI T 494	kN/m	3.5	-0.3
Cobb-Unger	SCAN-P 37:77	g/m²	0.4	≤0.8

Property	Test Method	Unit	Value	Tolerance
Substance	ISO 536 / TAPPI T410	g/m²	128	±4%
Thickness	ISO 534 / TAPPI T411	µm	124	±4%
Parker roughness	ISO 8791-4 / TAPPI T555	µm	2	≤2.5
Tensile strength MD	ISO 1924-2 / TAPPI T 494	kN/m	7	-0.7
Tensile strength CD	ISO 1924-2 / TAPPI T 494	kN/m	3.8	-0.3
Cobb-Unger	SCAN-P 37:77	g/m²	0.4	≤0.8

Property	Test Method	Unit	Value	Tolerance
Substance	ISO 536 / TAPPI T410	g/m²	135	±4%
Thickness	ISO 534 / TAPPI T411	µm	131	±4%
Parker roughness	ISO 8791-4 / TAPPI T555	µm	2	≤2.5
Tensile strength MD	ISO 1924-2 / TAPPI T 494	kN/m	7.5	-0.7
Tensile strength CD	ISO 1924-2 / TAPPI T 494	kN/m	4.1	-0.3
Cobb-Unger	SCAN-P 37:77	g/m²	0.4	≤0.8

Linerset CCK Duo

Two-side clay-coated release paper for siliconization with special reverse side.

Papel soporte, estucado dos cara, diseñado para siliconar con un dorso especial.

Papier support, couché sur deux faces, conçu pour être siliconé avec face arrière spéciale.

Carta release patinata argilla su due lati per siliconatura con retro speciale.

Release Liner

FSC;#PEFC;#RECYCLABLE;#REELS;#
